Tobacco Packaging Machine

The Tobacco Packaging Machine offers a comprehensive solution for the efficient and precise packaging of various tobacco products. With its advanced features and high-speed capabilities, it ensures product quality and consistency while optimizing production processes. This machine is essential for manufacturers aiming to enhance their tobacco packaging operations.

Share

Description

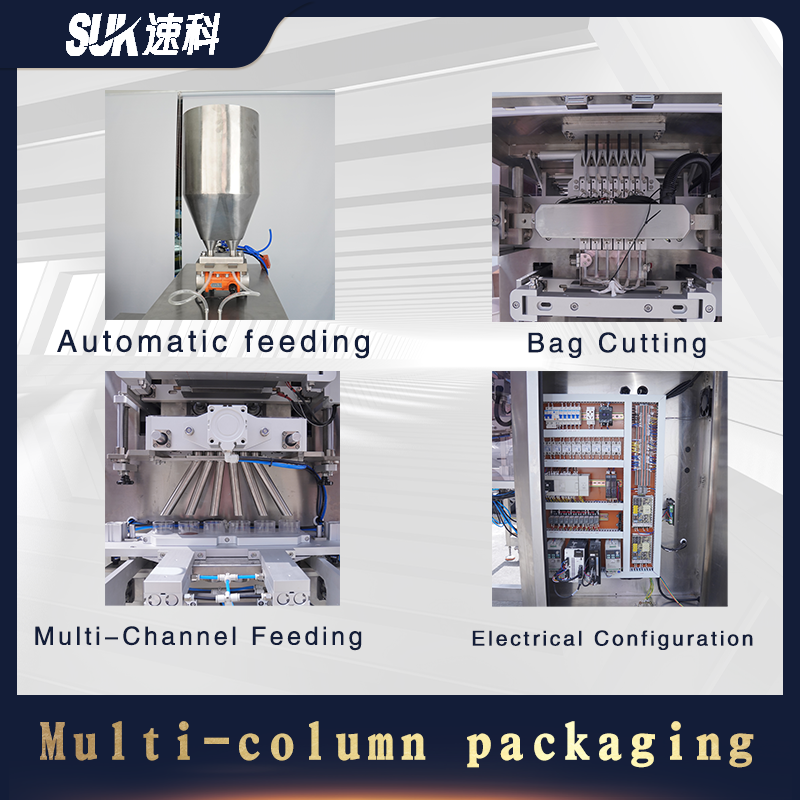

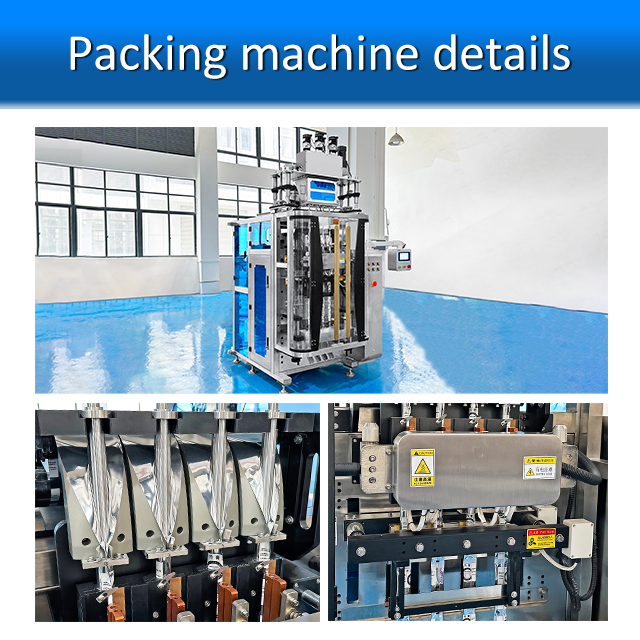

The Tobacco Packaging Machine is an advanced automated system designed for the efficient and precise packaging of various tobacco products. Suitable for products such as cigarettes, cigars, and loose tobacco, this machine ensures that the packaging process preserves product quality while maximizing production efficiency. Its robust design and advanced technology make it ideal for high-volume manufacturing environments.

Features

  1. Versatile Product Handling: Capable of packaging different forms of tobacco, including shredded tobacco, rolled cigarettes, and cigars, accommodating various market needs.
  2. High-Speed Operation: Engineered for high-speed packaging, significantly increasing production capacity to meet large-scale demands.
  3. Precision Filling and Sealing: Equipped with advanced filling mechanisms that ensure accurate dosing and secure sealing, minimizing product waste and ensuring freshness.
  4. User-Friendly Interface: Features an intuitive touchscreen control panel that simplifies operation, monitoring, and adjustments for different products.
  5. Durable Construction: Built from high-quality materials to withstand continuous operation, ensuring long-term reliability and performance.
  6. Hygienic Design: Complies with food safety standards, with materials and designs that facilitate easy cleaning and maintenance.

Application range

  • Packaged cigarettes
  • Loose tobacco
  • Cigar and cigarillo packaging
  • Filter tips
  • Rolling tobacco

Parameters

ModelSK-300BFSK-600BFSK-900BF
Packing speed20-40 cuts per minute/per column
20-40 cuts per minute/per column

20-40 cuts per minute/per column
Columns2-4 Columns3-10 Columns4-16 Columns
Bag SizeL:50-180mm W:20-70mmL:50-180mm W:20-95mmL:50-180mm W:20-105mm
Film Width Film ThicknessMax:300mm;
0.07-0.1mm
Max:600mm;
0.07-0.1mm
Max:900mm;
0.07-0.1mm
Bag Seal typeBack Seal, Three Side Seal, Four Side SealBack Seal, Three Side Seal, Four Side SealBack Seal, Three Side Seal, Four Side Seal
Cut type1.Flat cut
2.Serrated cut
3.Round corner cut
4.Shaped cut
1.Flat cut
2.Serrated cut
3.Round corner cut
4.Shaped cut
1.Flat cut
2.Serrated cut
3.Round corner cut
4.Shaped cut
Power3.5KW5.5KW7.5KW
Power supplyAC220V 1phase 50Hz/ AC380V 3phases 50HzAC220V 1phase 50Hz/ AC380V 3phases 50HzAC220V 1phase 50Hz/ AC380V 3phases 50Hz
Air consumption0.8m³/min 0.8Mpa0.8m³/min 0.8Mpa0.8m³/min 0.8Mpa
Dimension1385*918*2005 mm1685*1300*2005mm1700*1600*2500mm
Weights400kg600kg950kg
